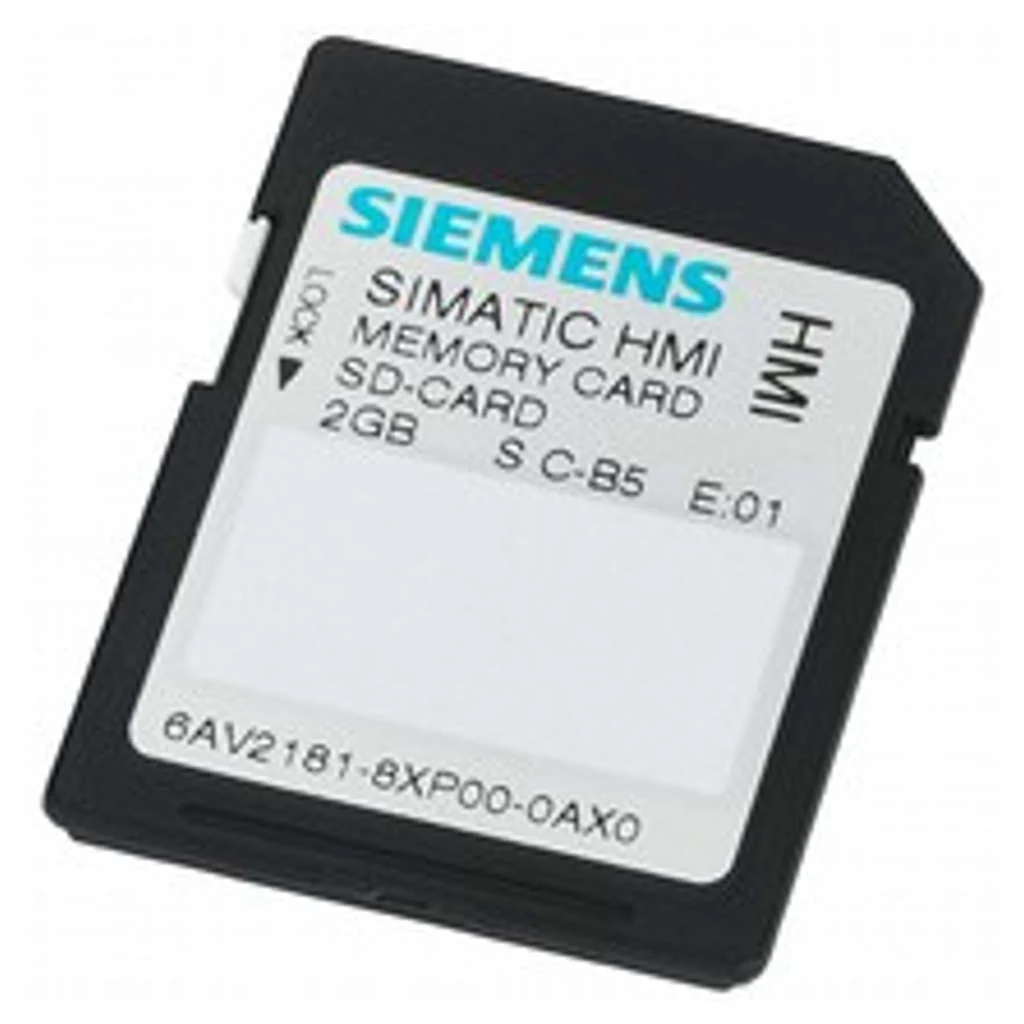

Siemens SD Memory Card 2 GB 6AV21818XP000AX0
Product Description
-
Key Features
-
Siemens SD memory card 2 GB secure digital card for devices with corresponding slot, scope of supply: 1 memory card
-
The Siemens Memory Card 2 GB 6AV21818XP000AX0 is a component used in Siemens automation systems, specifically designed for use with Siemens programmable logic controllers (PLCs)
-
This memory card provides additional storage capacity for program data
-
Warranty and support will be provided by vendor
-
Note:*Actual product image may vary from that shown on the picture
Product Specification
Brand |
Siemens |
Product Type |
SD Memory Card |
Product Model |
6AV21818XP000AX0 |
Control Elements | |
Frame Size / Design | |
Standard |
Yes; Typically 10 000 insertion cycles |
Flat |
Yes |
Supply Voltage | |
Type Of Supply Voltage |
DC |
Rated Value (DC) |
3.3 V; Maximum 3.6 V |
Input Current | |
Current Consumption (Rated Value) |
100 mA; Typical, maximum value |
Memory | |
Type Of Memory |
Secure Digital memory card |
Memory Size |
2 Gbyte |
Transmission Rate For Reading, Maximum |
600 Mbit/s; Typical |
Transmission Rate For Writing, Maximum |
600 Mbit/s; Typical |
Wear Leveling (Distributed Writing) |
Yes |
Write Protection Switch |
Yes; Effectiveness depends on the device |
Installation Type / Mounting | |
Mounting Position |
Any, dependent on target device |
Mounting In Portrait Format Possible |
Yes |
Mounting In Landscape Format Possible |
Yes |
Interfaces | |
Number Of Pins Device-Side |
9 |
Standards, Approvals, Certificates | |
CE Mark |
Yes |
UL Approval |
Yes |
cULus |
Yes |
KC Approval |
Yes |
EAC (Formerly Gost-R) |
Yes |
RoHS Conformity |
Yes |
China RoHS Compliance |
Yes |
Marine Approval |
Yes; Passive component, therefore dependent on target device |
Ambient Conditions | |
Suited For Indoor Use |
Yes |
Suited For Outdoor Use |
No |
Ambient Temperature During Operation | |
Minimum |
0 °C |
Maximum |
55 °C |
Ambient Temperature During Storage / Transportation | |
Minimum |
-25 °C |
Maximum |
70 °C |
Relative Humidity | |
Operation, Maximum |
65 % |
Condensation Permissible |
No; Condensation not permissible |
Operating Systems | |
Pre-Installed Operating System | |
Windows CE |
No; Preinstalled system files |
Runs Under Operating System | |
Windows CE |
Yes |
Windows Vista |
Yes |
Windows XP |
Yes |
Windows 7 |
Yes |
Windows 8 |
Yes |
Windows 10 |
Yes |
Linux |
Yes |
other |
Yes; Card must not be formatted |
Scope Of Supply | |
Delivery Quantity In Pieces |
1 |
Dimensions | |
Width |
24 mm |
Height |
32 mm |
Thickness |
2.1 mm |
Weights | |
Weight (Without Packaging) |
3 g |
Weight (With Packaging) |
6 g |
