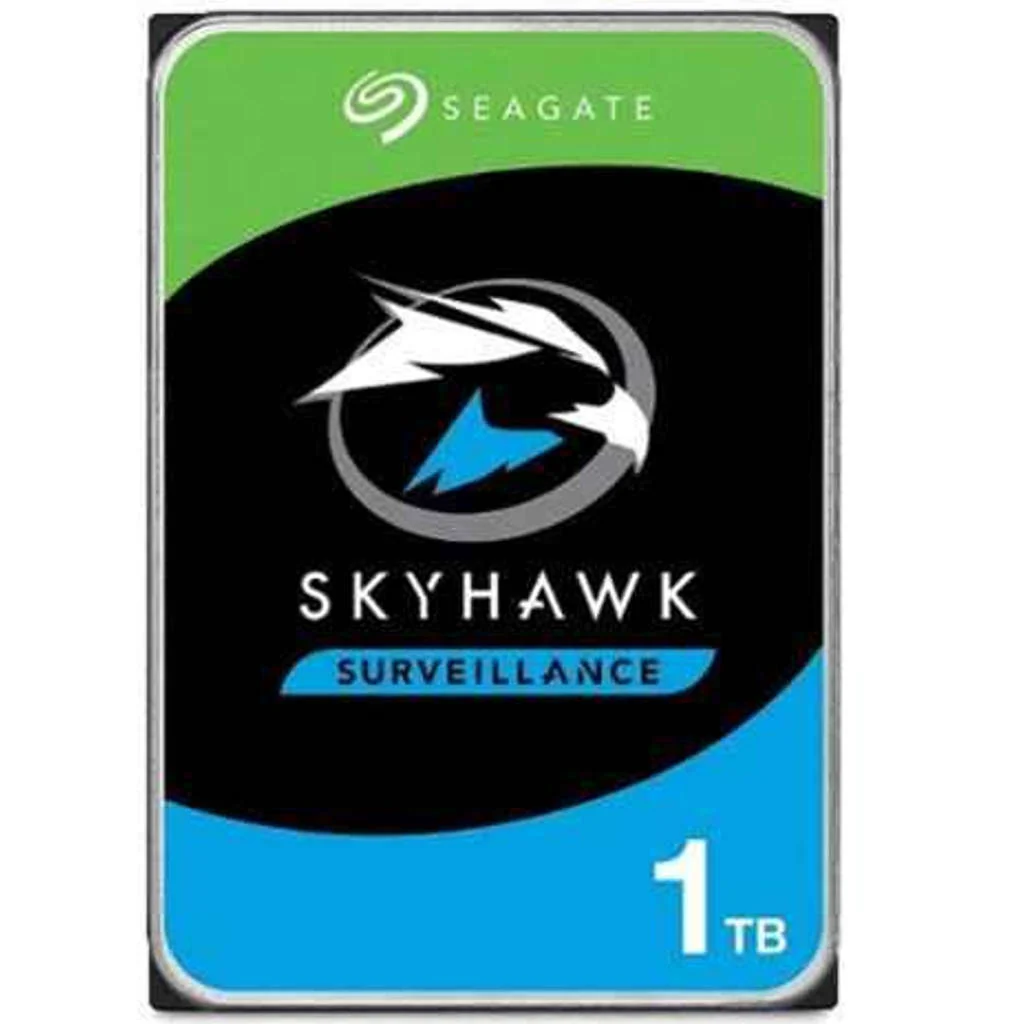

Seagate Skyhawk SV35 HDD 1TB ST1000VX005
Product Description
-
Image Perfect Firmware
-
Supports 24×7 surveillance-optimized workloads tuned to record 90% of the time and play back video footage the remaining 10%,and supports more cameras recording at higher resolutions than traditional drives
-
Workload Rating Of 180TB/Year
-
Allows SkyHawk to perform reliably in write-intensive surveillance systems-3× the workload rating of a desktop-class drive
-
NVR-Ready Design
-
Allows drives to maintain performance in RAID and multi-drive systems,giving customers the flexibility to grow with the booming NVR market and scale their systems when more storage is needed
-
ATA Streaming Support
-
Sustains recordings from up to 64 HD cameras for smooth,uninterrupted footage
-
Up To 10TB or Over 2000 Hours Of HD Video Storage
-
Supports an increased number of cameras and helps to ensure longer data retention periods are met
-
1M Hours MTBF,3-Year Limited Warranty
-
Represents an improved total cost of ownership (TCO) with reduced maintenance costs
-
Lower Power Consumption
-
Means a reduction in heat emissions,which improves reliability in surveillance solutions
-
Tarnish-Resistant Components
-
Help protect drive from environmental elements,increasing field reliability
Product Specification
| Brand | Seagate |
| Product Type | HDD |
| Product Model | Skyhawk SV35 |
| Product Code | ST1000VX005 |
| Interface | SATA 6Gb/s |
| Features And Performance | |
| Drive Bays Supported | 1 To 8 |
| Cameras Supported | Up To 64 |
| Maximum Sustained Transfer Rate OD | 180 MB/s |
| Cache | 64 MB |
| Reliability/Data Integrity | |
| Tarnish Resistant | No |
| Nonrecoverable Read Errors Rate, Maximum | 1 Per 10E14 |
| Power-On Hours Per Year | 8760 |
| Workload Rate Limit (WRL) | 180 |
| Mean Time Between Failures (MTBF) | 1M Hours |
| Power Management | |
| Startup Current, Typical (12V, A) | 1.8 |
| Average Operating Power | 5.6 W |
| Idle Average | 4 W |
| Standby Mode/Sleep Mode, Typical | 0.5/0.5 W |
| Voltage Tolerance (5V) | ±5% |
| Voltage Tolerance (12V) | ±10% |
| Environmental/Temperature | |
| Operating (Ambient,Minimum°C) | 0 |
| Operating (Drive Case,Maximum °C) | 70 |
| Nonoperating (Ambient,Minimum°C) | -40 |
| Physical | |
| Maximum Height | 20.20 mm 0.795 Inch |
| Maximum Width | 101.85 mm 4.01 Inch |
| Maximum Depth | 146.99 mm 5.787 Inch |
| Typical Weight | 415 g 0.915 Ib |
| Warranty | 3 Years |
