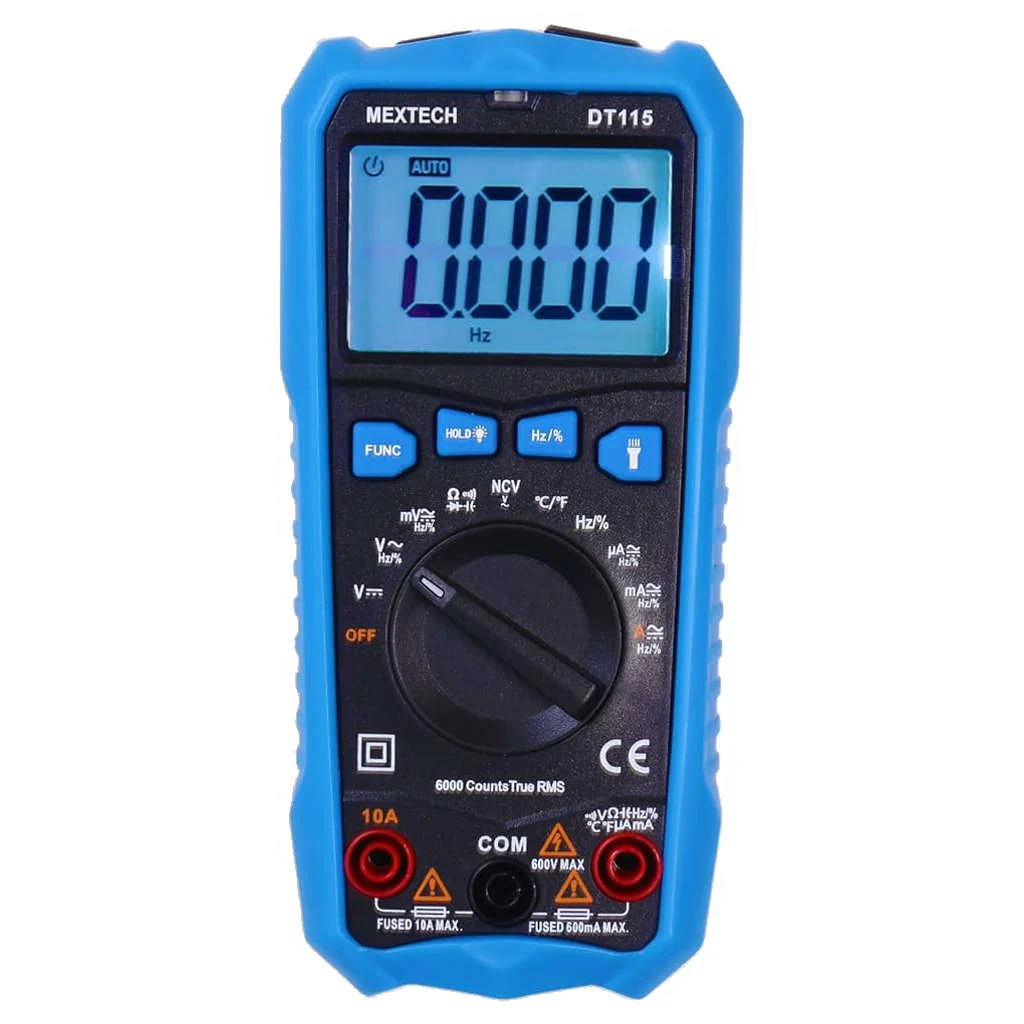

Mextech 33⁄4 Digits True RMS Digital Multimeter 600V DT115
Product Description
-
Application
-
This is a 3¾ Digits True RMS multimeter with Backlight
-
This instrument can be used to measure AC/DC voltage, AC/DC current, Resistance, Capacitance, Frequency, Temperature, Non-Contact Voltage detection and other parameters
-
It is an ideal tool for the Electricians, Engineers, Laptop & Mobiles & Electronics appliances Repairing Centre, Factories, Industries, Laboratories, Students, Household
-
Features
-
Display: 3¾ Digits with 5999 Counts with Backlight
-
Over Range Indication
-
Overload Protection
-
Fuse Protection
-
Wall Mount & Table Type
-
Data Hold Function
-
Auto/Manual Ranging
-
Non-Contact AC Voltage Detector. (NCV)
-
Sampling Time 0.4 Seconds
Product Specification
|
Brand |
Mextech |
|
|
Product Type |
Digital Multimeter |
|
|
Product Model |
DT115 |
|
|
Digit Display |
3¾ Digits 5999 Counts |
|
|
Basic Function |
Range |
Best Accuracy |
|
AC Current |
10A (3 Ranges) |
±3.0% in A/ ±1.5% in µA, mA |
|
DC Current |
10A (3 Ranges) |
±2.0% in A/ ±1.0% in µA, mA |
|
AC Voltage |
600V (2 Ranges) |
±1.5% |
|
DC Voltage |
600V (2 Ranges) |
±0.5% |
|
Resistance |
60MΩ (Auto Range) |
±0.8% |
|
Capacitance |
99.99mF(Auto Range) |
±3.0% |
|
Frequency |
10KHz (2 Range) |
±2.0% |
|
Duty Cycle |
10～95% |
±2.0% |
|
Temperature |
-30～1000°C |
±2.0% |
|
Continuity |
Yes |
|
|
NC AC Voltage Detector |
90-1000V |
|
|
Operating Temperature & Humidity |
0°C To 40°C, 45%-80%RH |
|
|
Storage Temperature & Humidity |
-20°C To 60°C, 45%-80%RH |
|
|
Power Supply |
3 X AAA Batteries |
|
|
Auto Power Off |
15 mins |
|
|
Display Size |
47 X 30 mm |
|
|
Including Components |
Instruction Manual, 3 X AAA Batteries, 1Set Test lead, Temperature Probe |
|
|
Dimension (H x W x L) |
148 × 69 × 44 mm |
|
|
Weight |
190 gm Excluding Battery |
|
|
Warranty |
As Per Manufacturer Terms and Condition |
|
Other Details
|
Dimension (CM) - L x B x H |
14.8 x 6.9 x 4.4 |
|
Unit of Measurement |
1 Piece |
|
Weight |
0.5 kg |
|
Generic Type |
Digital Multimeter |
|
Manufacturer Details |
Mextech Technologies India Private Limited 4A, Yatin Mansion, 1st Floor, C Block, Bhangwadi, Kalbadevi Road, Kalbadevi Mumbai - 400002, Maharashtra, India |
|
Packer Details |
Mextech Technologies India Private Limited 4A, Yatin Mansion, 1st Floor, C Block, Bhangwadi, Kalbadevi Road, Kalbadevi Mumbai - 400002, Maharashtra, India |
|
Country of Origin |
India |
