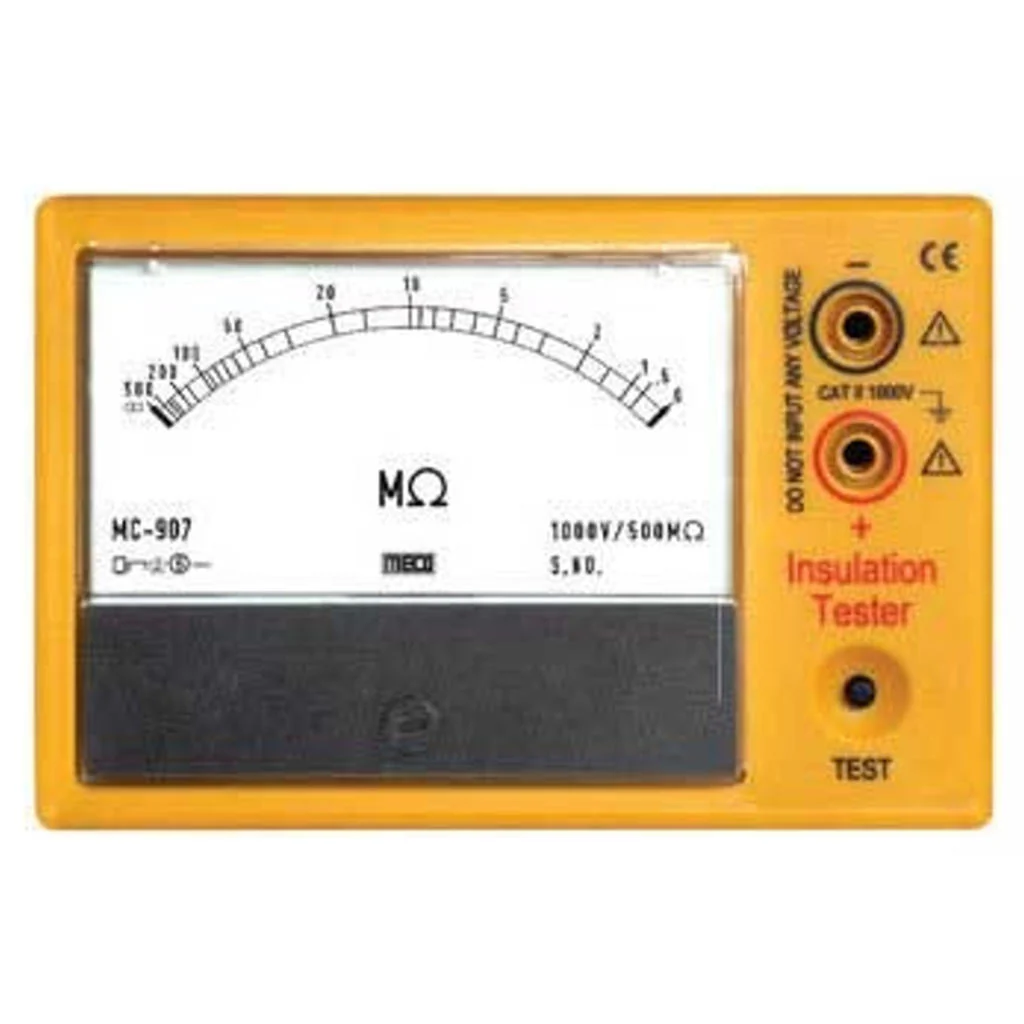

Meco Analog Insulation Tester with Battery Adapter MC 901BA
Product Description
-
Single Person Push Button Operation
-
High Accuracy ± 5% of Indicated Value in Effective Range
-
Scale Length : 80mm (approx.)
-
Terminal Voltage : > 85% of Rated Voltage for Insulation Resistance
-
Measurement from 10% to 100% of the Insulation Resistance Range
-
ABS Resin Yellow Case with Polycarbonate Meter Front Cover
-
Meets Requirement of IEC 61010, Installation Category II, 1000V Phase Earth
-
Designed to Generally Confirm to IS 10656-1983
-
7 Models with various Voltage & MOhm Ranges
-
Battery Adaptor (Optional) for MC-900BA Series
Product Specification
|
Brand |
Meco |
|
Model No |
MC 901BA |
|
Product Type |
Analog Insulation Tester with Battery Adapter |
|
Range |
0-20MOhms |
|
Test Voltage DC |
100V |
|
Display Type |
Analog |
|
Accuracy |
± 5% of Indicated Value at 27° C ± 5° C |
|
Operating Temperature |
0° to 50° C |
|
Storage Temperature |
-10° C to 60° C |
|
Relative Humidity |
80% Maximum |
|
Power |
9V (6 x 1.5V AA) Battery |
|
Operating Environment |
-10°C ~ 55°C |
|
Dimensions |
144.5 x 95 x 72.5 mm (approx.) |
|
Weight |
438.6 gms Including Battery (approx.) |
