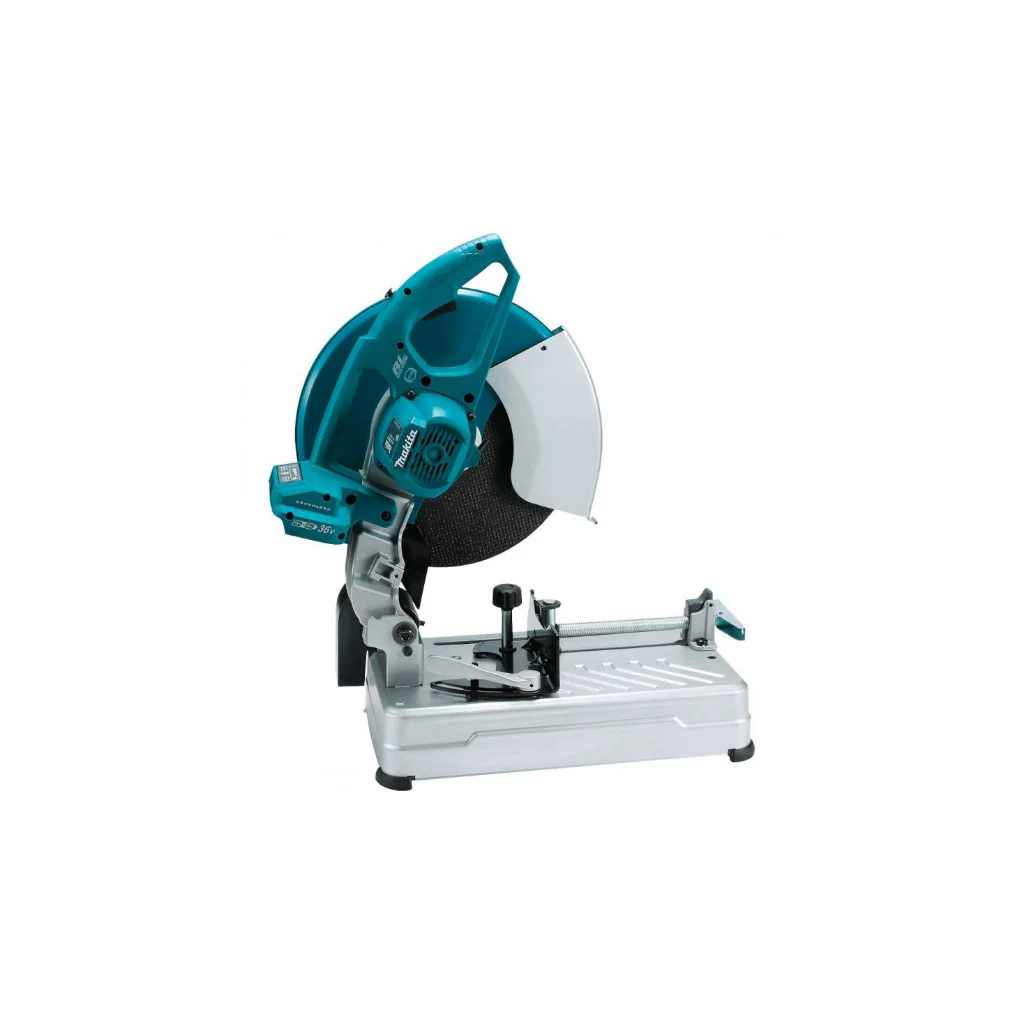

Product Description

• Cuts 130 metal studs with BL1850B x2

• Electric brake allows adjustments to be completed faster for maximum productivity

• Load status indicator shows the load level on the motor during cutting operation

• Suitable for light duty application, such as cutting metal studs

• Toolless flange removal for quick and easy wheel changes

• Toolless fence and vise controls for quick and easy adjustments to varied needs

• Large spark guard captures and deflects debris away from the surrounding area

• Quick release vise for secure stock retention and fast repeated cut offs

• Pin type saw head locking device for storage and transport

Product Specification

Brand	Makita
Product Type	Cut Off Saw
Product Code	DLW140Z
Wheel Diameter	355 mm (14")
Hole Diameter	25.4 mm (1")
Capacity At 90°	Round: 127 mm (5") Rectangular: 102 x 194 mm (4" x 7-5/8") Rectangular: 70 x 233 mm (2-3/4" x 9-1/8") Rectangular: 115 x 130 mm (4-1/2" x 5-1/8")
Capacity At 45°	Round: 127 mm (5") Rectangular: 115 x 103 mm (4 - 1/2" x 4 - 1/16")
Max Wheel Thickness	3 mm (1/8")
No Load Speed (RPM)	3,800
Dimensions (L X W X H)	537 x 280 x 640mm (21-1/8" x 11" x 25-1/4")
Voltage	18V x 2 (36V)
Weight	17.2 - 17.8 kg (37.9 - 39.3 lbs.)
Standard Accessories	Cut-Off Wheel
Warranty	As Per Manufacturer Terms And Conditions
