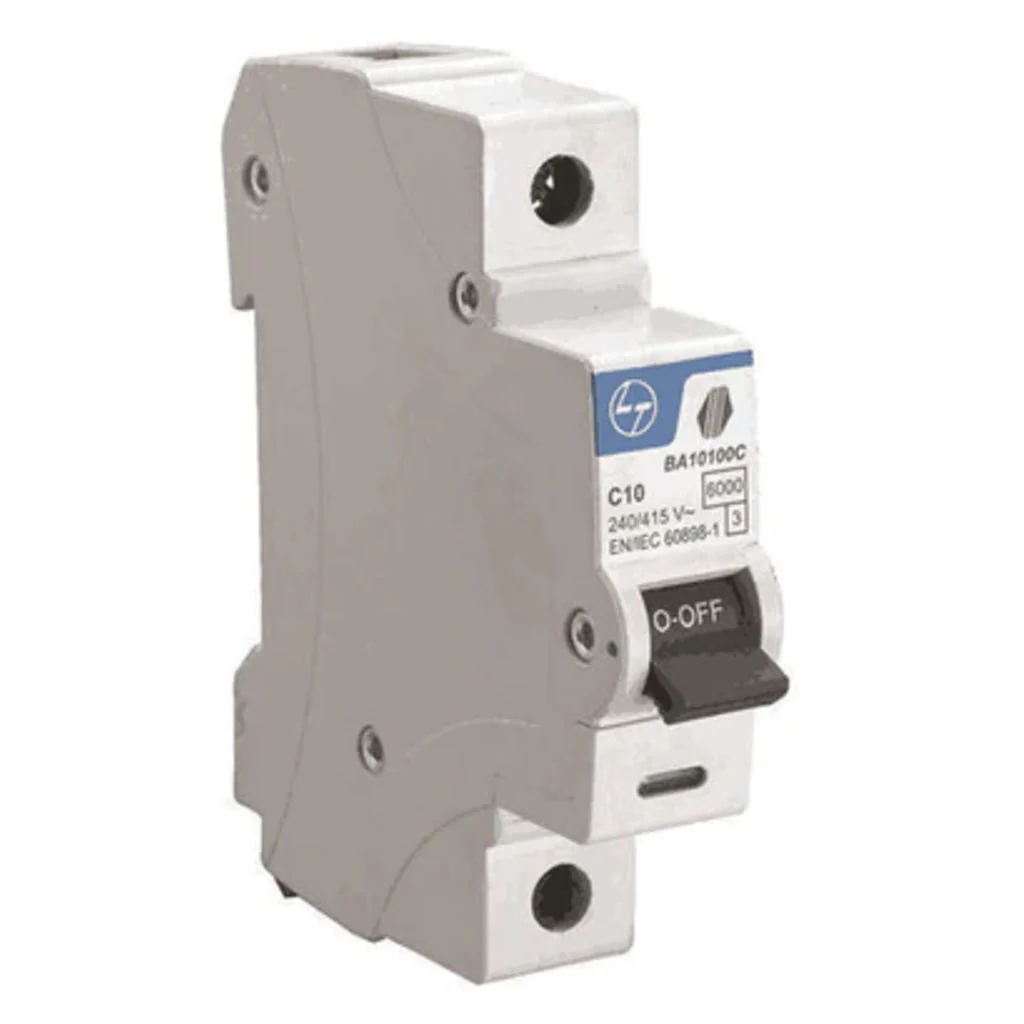

Product Description

• True contact indication for individual pole

• Label holder facility for all configurations

• Conforms to IS / IEC 60898 and IEC 60947 - 2

• Breaking capacity of 10kA throughout the range

• Available in B, C & D curves

• Low watt loss - almost 50 % of the values prescribed by IS / IEC 60898

• Trip free mechanism

• Design based on advanced current limiting hammer trip mechanism

• No Line-Load bias

• Suitable for accessory fitment

• DC MCBs as per IEC 60947-2 Rated Voltage:130V DC (for SP), 250V DC (for DP) with breaking capacity of 6kA

Product Specification

Rating	Model
0.5A	BB10E50C
1A	BB10010C
2A	BB10020C
3A	BB10030C
4A	BB10040C
20A	BB10200C
25A	BB10250C
32A	BB10320C
40A	BB10400C
50A	BB10500C
63A	BB10630C
