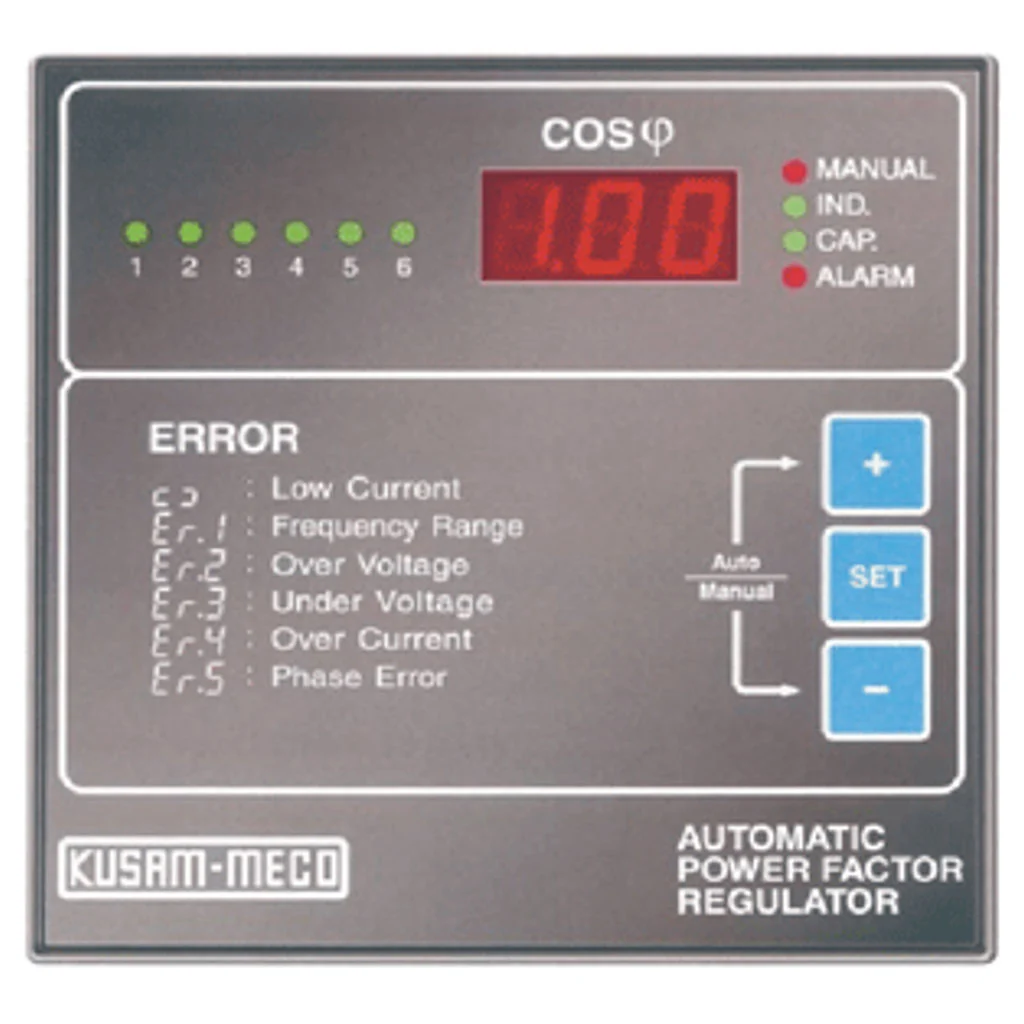

Kusam-meco Sequence Based Automatic Power Factor Regulator KM-PFR-9-06
Product Description
-
The pioneers & leaders in high quality power factor controllers & maximum demand controllers, now introduce new economy model of power factor controllers
-
These controllers have microprocessors for automatic control of power factor
-
It has Digital indication for power factor
Product Specification
|
Brand |
Kusam-meco |
|
Product Model |
KM-PFR-9-06 |
|
Product Type |
Power Factor Regulator |
|
No Of Steps |
6 steps |
|
Voltage Burden |
£ 6 VA |
|
Operation Voltage Range |
AC 220 V ± 15 % & AC 415 V ± 15 % |
|
Input Current Range |
AC 0.05 ~ 5A, max 6A |
|
Current Burden |
£ 0.5 VA |
|
Power Factor Display |
Digital Display, RED LED, 14.2 mm Height, 0.01PF Resolution |
|
Power Factor Setting Range |
CAP 0.90 ~ IND 0.90 ( Factory Set 0.98 P.F.) |
|
C/K Setting Range |
Automatic self adjustment for C / K Value |
|
Operation Time Display |
10 ~ 240 sec. Delay time. ( Factory set 30 sec ) |
|
Output Contacts Coils |
AC 220V 5 A ( Max. AC 380 V, 5 A, Typical ) |
|
Operation Temperature Range |
0 ~ 60° C |
|
Storage Temperature Range |
-10 ~ 70° C |
|
Dielectric Strength |
AC 220 V, 50 Hz, 1 minute, Input / Output / Ground |
|
Withstanding Impulse Voltage |
According to IEC 1000 - 4 - 5 |
|
Electrical Transient Burst |
According to IEC 1000 - 4 - 4 |
|
Connection |
Plug in Terminal block |
|
Phase |
Single Phase or Three Phase |
|
Outside Dimension |
144 x 144 mm and 65mm ( Depth) as Per Din standard |
|
Weight |
About 1 kg |
|
Warranty |
As Per Manufacturer Terms and Condition |
