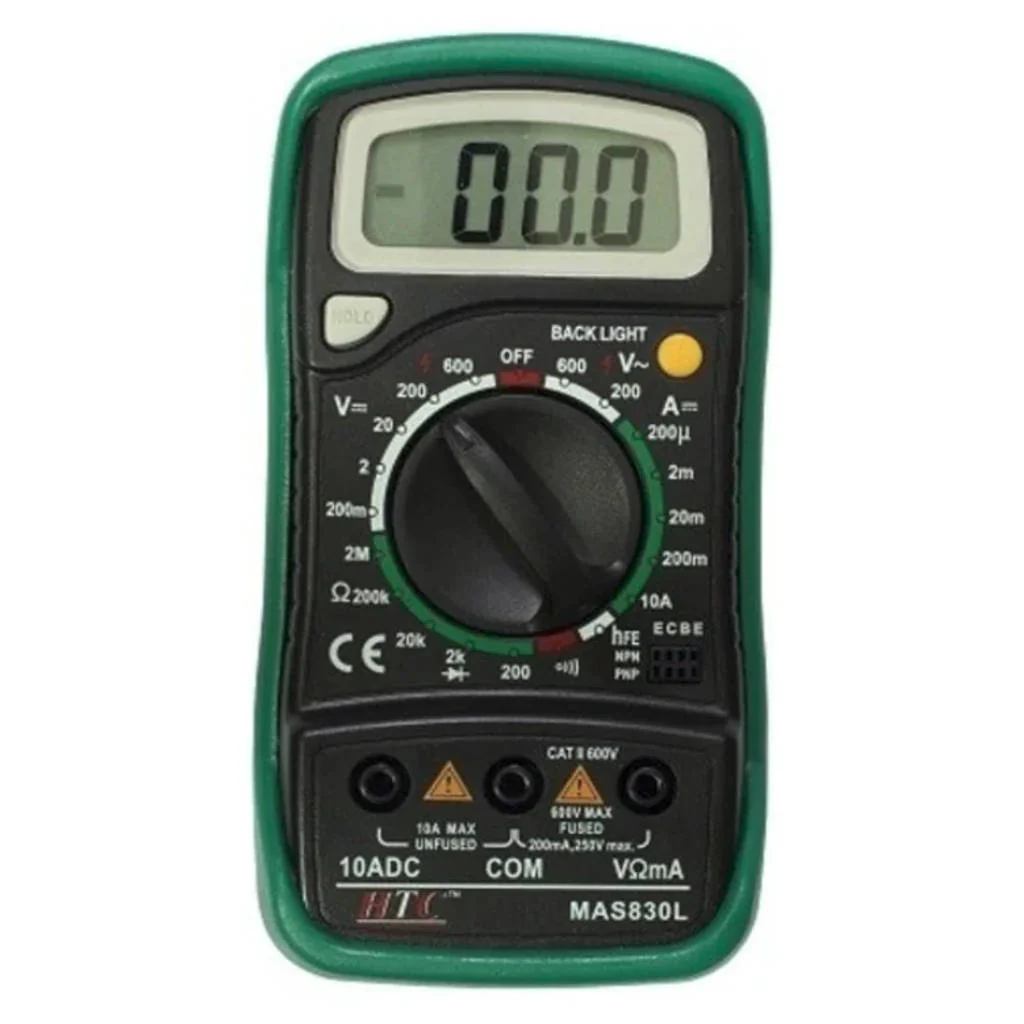

HTC Digital Multimeter DM – 830L
Product Description
-
3 ½ Digit LCD Display with backighting
-
Data Hold
-
Transistor & Diode Test
-
Overload Protection
-
Low Bettery Indication
-
Standard Accessories: Manual, Test Leads, 9 Volt Battery, Holster
Product Specification
|
Brand |
HTC |
|
Product Code |
DM-830L |
|
Product Type |
Digital Multimeter |
|
Model No |
HTC-A2 |
|
DC Voltage Range |
200mV/2V/20V/200V/600V |
|
DC Voltage Accuracy |
±(0.8% + 2 Digits) |
|
AC Voltage Range |
200 / 600V |
|
AC Voltage Accuracy |
±(1.5% + 10 Digits) |
|
DC Current Range |
200µA/2mA/20mA/200mA/10A |
|
DC Current Accuracy |
±(1.0% + 10 Digits) |
|
Resistance Range |
200Ω/2kΩ/20kΩ/200kΩ/2MΩ |
|
Resistance Accuracy |
±(0.8% + 2 Digits) |
|
Diode Check |
3V / 0.8mA |
|
hFE (NPN or PNP) |
0 ~ 1000 |
|
Dimension |
69(H) x 138(W) x 31(D)mm |
|
Product Weight |
170 g |
|
Warranty |
As Per Manufacturer Terms And Condition |
Product Information
