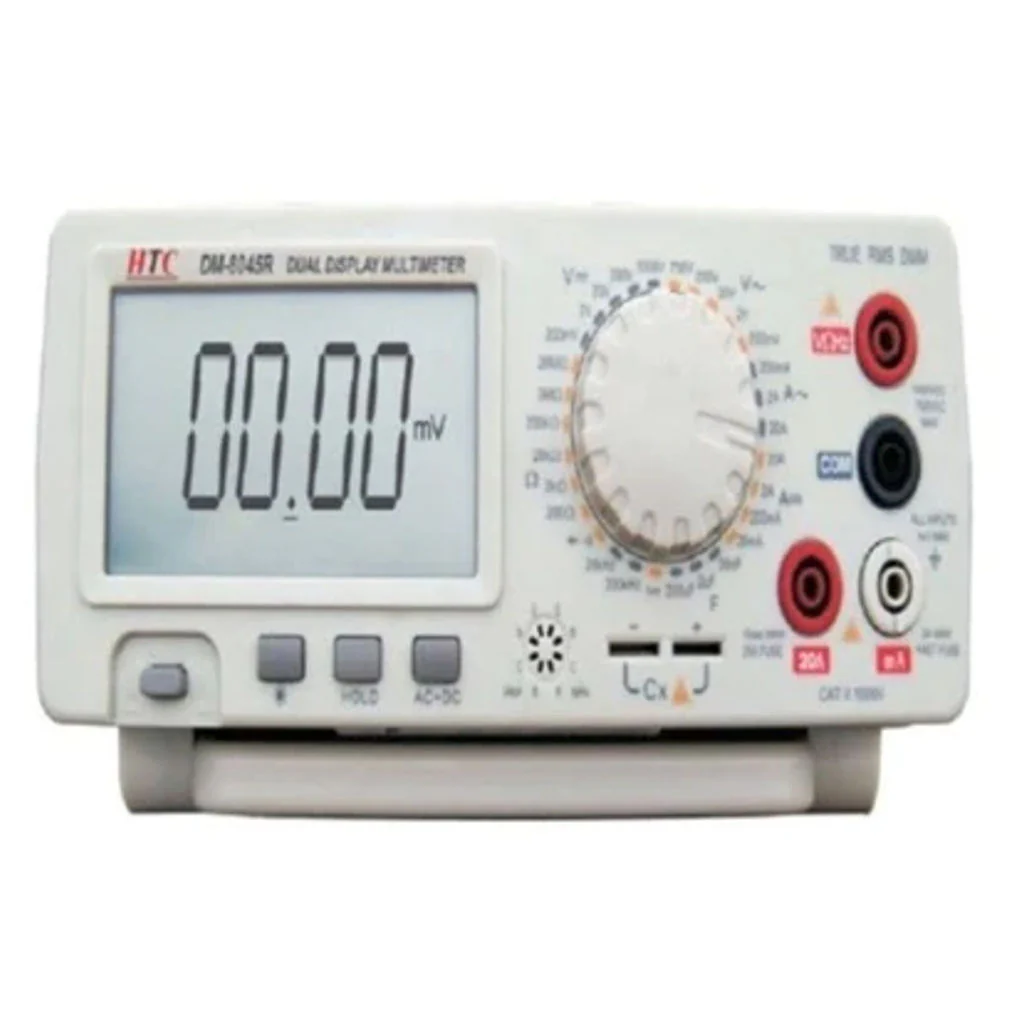

HTC Bench Type Digital Multimeter DM-8045R
Product Description
-
4½ Digital Large LCD Display
-
20,000 Counts
-
Auto Power OFF
-
Data Hold
-
Backlight
-
True RMS
-
Standard Accessories: Test Leads, Power Cord , Manual
Product Specification
|
Brand |
HTC |
|
Product Code |
DM-8045R |
|
Product Type |
Bench Type Digital Multimeter |
|
Model No |
HTC-A15 |
|
DC Voltage Range |
200mV/2V/20V/200V/1000V |
|
DC Voltage Accuracy |
±(0.05% + 3) |
|
AC Voltage Range |
200mV/2V/20V/200V/750V |
|
AC Voltage Accuracy |
±(0.8% + 80) |
|
DC Current Range |
20mA/200mA/2A/20A |
|
DC Current Accuracy |
±(0.35% +10) |
|
AC Current Range |
200mA/2A/20A |
|
AC Current Accuracy |
±(0.8% + 80) |
|
Resistance Range |
20Ω/2kΩ/20kΩ/200kΩ/2MΩ/20kΩ |
|
Resistance Accuracy |
±(0.1% + 5) |
|
Frequency Range |
20kHz/200kHz |
|
Frequency Accuracy |
±(1.0% +20) |
|
Capacitance Range |
20nF/2uF/200uF |
|
Capacitance Accuracy |
±(3.5% + 20) |
|
Input impedance |
10MΩ |
|
Sampling Rate |
3 times per second |
|
AC Frequency Response |
40-400Hz |
|
Continuity Buzzer |
Approx. < 30Ω +10Ω |
|
Low Battery Display |
Approx. < 7.5V |
|
Auto Power OFF |
Approx. 30 min. |
|
Dimension |
245(H) x 220(W) x 82(D)mm |
|
Warranty |
As Per Manufacturer Terms And Condition |
