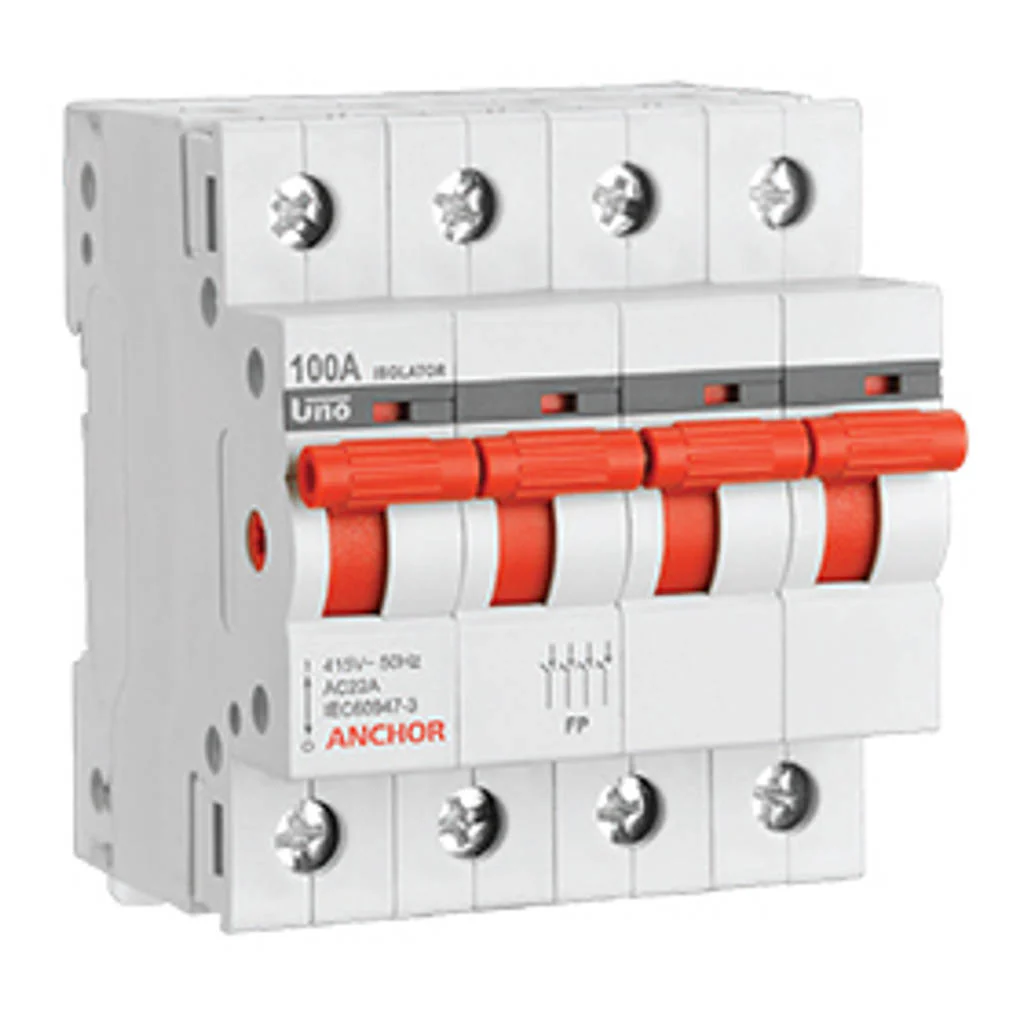

Anchor UNO Isolator 4 Poles
Product Description
-
UNO isolators are perfect companions for ensuring the complete de-energisation of the electrical circuits of residences, commercial premises and also adhere to the IS/IEC 60947-3 norms
-
These are equipped with Silver alloy contacts for weld-free operations and form the perfect fitments as incomers for individual residential as well as commercial premises
-
The isolator ensures that there will be no current at the load side even if impulse voltage appears when the isolator is OFF
Product Specification
|
Brand |
Anchor |
|
Product Type |
Isolator |
|
Product Code | Current Rating(In) |
98063 | 40A 98064 | 63A 98099 | 100A 98100 | 125A |
|
Series |
UNO |
|
Standard Conformity |
IS/IEC60947-3 |
|
No. of Poles |
4P |
|
Rated Voltage(Ue) |
240/415V AC |
|
Rated Frequency(f) |
50Hz |
|
Terminal Capacity |
35 sq mm |
|
Protection Class |
IP20 |
|
Contact Position Indication |
Red-ON & Green-OFF |
|
Termination |
Bi Connect(bus bar/cable) |
|
Warranty |
As Per Manufacturer Terms & Conditions |
