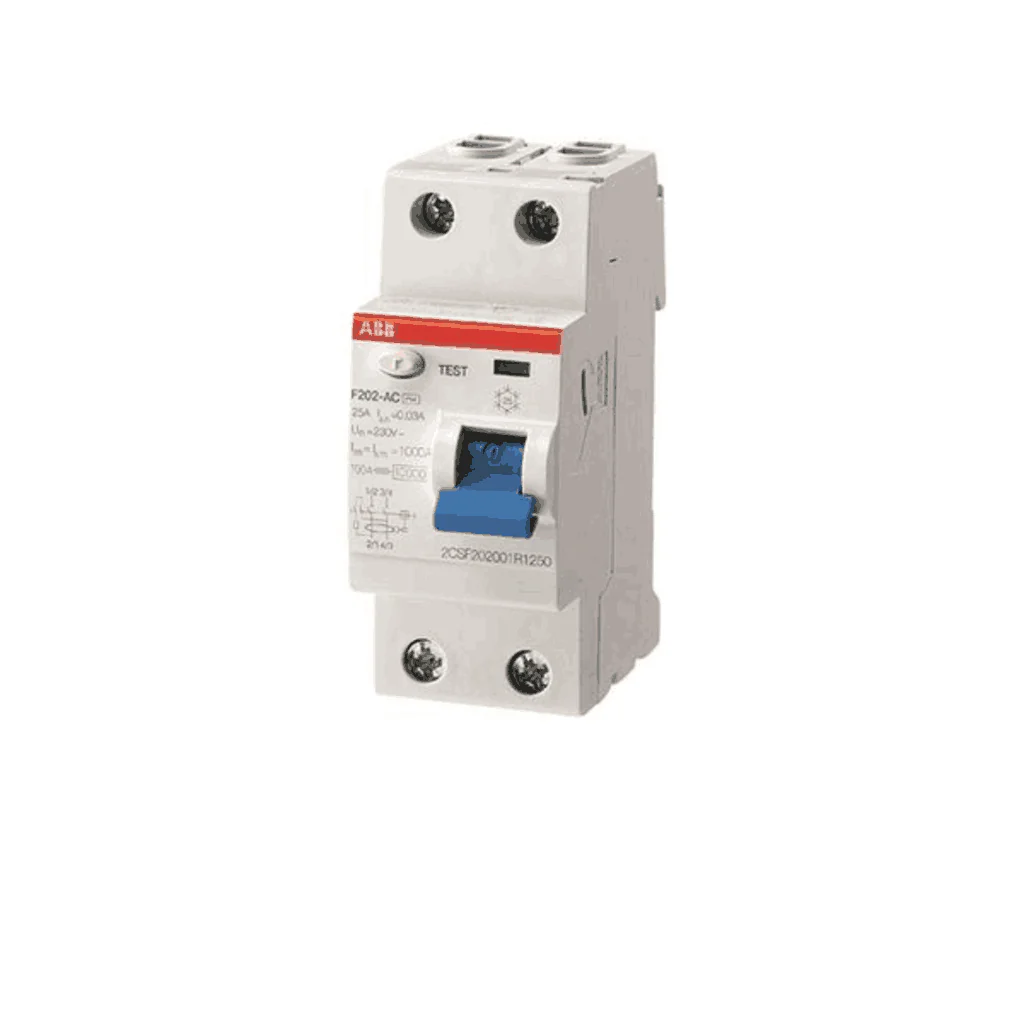

ABB RCCB 25-63 A Two Pole F202
Product Description
-
The RCCBs F200 series assures protection to people and installations against fault current to earth.
-
A large offer for standard instantaneous and selective AC and A types is completed with some configurations for special applications
-
Detects AC and pulsing DC fault currents
-
Application: residential, commercial, industrial
-
Surge current resistance (wave 8/20)=3000 A
-
DIN rail assembly
-
Type of Residual Current:A type
-
Product Net Width:0.035m
-
Product Net Height:0.085m
-
Product Net Depth:0.069 m
-
Product Net Weight:0.200kg
-
Standards:IEC/EN 61008
-
Rated Voltage (Ur):230/400 V
-
Rated Frequency:50...60Hz
-
Ambient Air Temperature:Operation -25 ... +55 °C , Storage -40 ... +70 °C
-
Power Loss:2 W
-
Toggle:Blue Sealable in ON-OFF position
-
Max. Operating voltage of Circiut test:254 V
-
Min. Operating voltage of Circiut test:110 V
Product Specification
|
Rated current |
Rated Residual Current |
Type |
Product id |
|
25 A |
30 mA |
F202 A-25/0.03 AP-R |
2CSF202401R1250 |
|
40 A |
30 mA |
F202 A-40/0.03 AP-R |
2CSF202401R1400 |
|
63 A |
30 mA |
F202 A-63/0.03 AP-R |
2CSF202401R1630 |
