Brand

ABB

Product Type

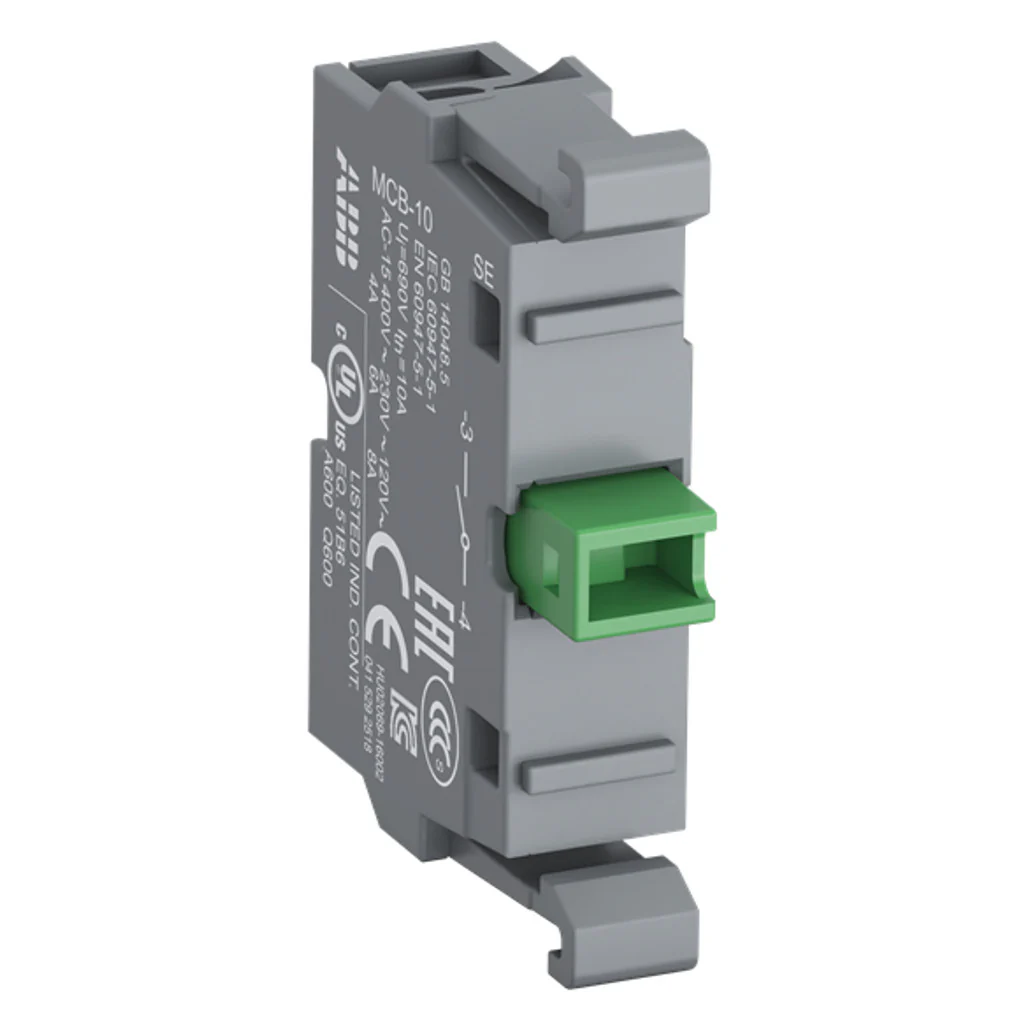

Contact Block

Code | Model | Colors

1SFA611610R1001

Model

MCB-10

Technical

Ambient Air Temperature

Operation -25 ... +70 °C
Storage -40 ... +85 °C

Illumination

Non-illuminated

Function

Without holder

Mounting Type

Front mounting

Number of Auxiliary Contacts NO

1

Degree of Protection

Terminals IP20

Rated Frequency (f)

Supply Circuit 50 / 60 Hz

Rated Operational Voltage

Maximum 690 V AC/DC

Rated Operational Current DC-13 (I_e)

(24 V) 5 A
(125 V) 1.1 A

Rated Operational Current AC-15 (I_e)

(230 V AC) 6 A

Power Loss

Maximum 2.5 W

Mechanical Durability

10 million

Connecting Capacity Main Circuit

Flexible with Ferrule 1/2x 0.75 ... 2.5 mm²
Flexible with Insulated Ferrule 1x 0.75 ... 2.5 mm²
Flexible with Insulated Ferrule 2x 0.75 ... 2.5 mm²
Flexible 1 x 0.75 ... 2.5 mm²
Flexible 2 x 0.75 ... 2.5 mm²
Solid 1 x0.75...2.5 mm²
Solid 2 x0.75...2.5 mm²

Terminal Type

Screw Terminals

Tightening Torque

0.9 N·m

Wire Stripping Length

8 mm

Dimensions

Product Net Width

0.01 m

Product Net Height

0.044 m

Product Net Depth / Length

0.028 m

Product Net Weight

0.013 kg

Warranty

As Per Manufacturer Terms and Condition
