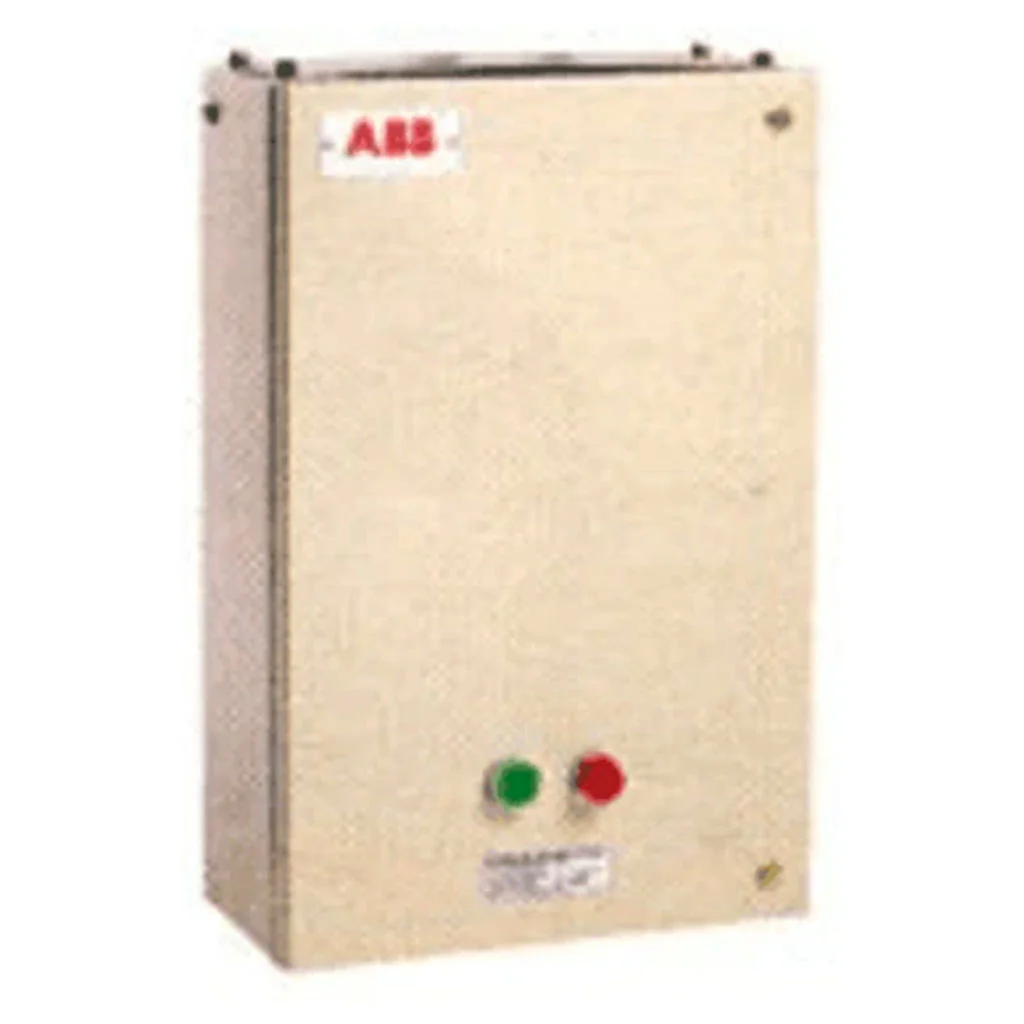

Product Description

• The main purpose of motor starters is to start the electrical motor by switching ON the contactor inside the starter

• The relay inside the starter additionally protects the motor in case of overload and single phasing condition

• The starter is nothing but a pre-wired assembly of contactor(s), relay and ON-OFF push buttons. Direct on line and star delta are two methods of starting the electric motors which is achieved by our DOL and star delta starter respectively

• In built A09-30-10 Contactor with coil voltage 220-230V/400-415V AC

• Series : SDA

• Suitable for : 12.5HP to 75 at 415V AC 3-Phase Motors

• Confirms to : IS/IEC 60947-4-1

• Typically used for : ON/OFF & Protection of Three Phase Motor Applications

Product Specification

HP Rating at 230V	Description	Product Id
12.5	SDA-12.5 220 ... 230 V coil	1SYN184322R3800
15	SDA-15 220 ... 230 V coil	1SYN242322R3800
20	SDA- 20 220 ... 230 V coil	1SYN244322R3800
25	SDA-25 220 ... 230 V coil	1SYN246322R3800
30	SDA-30 220 ... 230 V coil	1SYN282322R3800
35	SDA-35 220 ... 230 V coil	1SYN284322R3800
40	SDA-40 220 ... 230 V coil	1SYN322322R3800
50	SDA-50 220 ... 230 V coil	1SYN352342R3800
60	SDA-60 220 ... 230 V coil	1SYN372342R3800
75	SDA-75 220 ... 230 V coil	1SYN412342R3800
