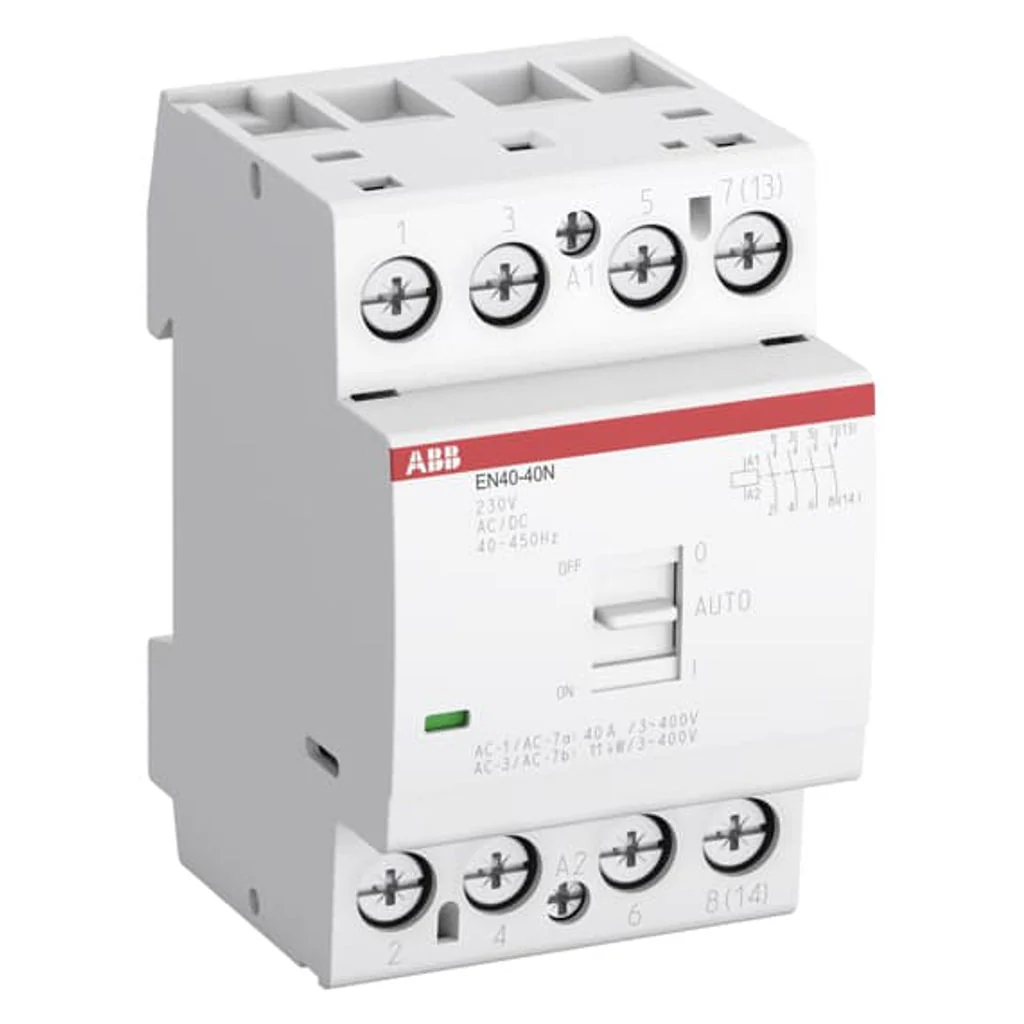

ABB EN40-30N-06 Installation Contactor 1SAE342111R0630

Product Description

The EN40..N installation Contactors are used To control single and three-phase loads up To 40 A and can be operated by AC or DC and/or manually
These Contactors are made for use in household applications as well as in industrial environments
The following benefits are provided:
Hum-free operation, low power consumption, integrated overvoltage protection and manual override
Various contact combinations and Accessories are available
Manual operation is available in 3 states: "On", "Off", "AuTo"

Product Specification

Brand	ABB
Product Type	Installation Contactor
Product Code	1SAE342111R0630
Model	EN40-30N-06
Technical
Rated Operational Voltage	Main Circuit 220 V DC, Main Circuit 400 V AC
Rated Control Circuit Voltage (U_c)	230 V
Rated Frequency (f)	Control Circuit 400 Hz, Control Circuit 50 Hz, Control Circuit 60 Hz, Control Circuit DC, Main Circuit 50 Hz, Main Circuit 60 Hz, Main Circuit DC
Rated Operational Current AC-1 (I_e)	(NO) 40 A
Rated Operational Current AC-3 (I_e)	(230 V) Single Phase, NO 22 A (400 V) Three Phase, NO 22 A
Rated Operational Power AC-1 (P_e)	(230 V) Single Phase, NO 9.2 kW (400 V) Three Phase, NO 27.7 kW
Rated Operational Power AC-3 (P_e)	(230 V) Single Phase, NO 3.7 kW (400 V) Three Phase, NO 11 kW
Rated Operational Current AC-7a (I_e)	(NO) 40 A
Rated Operational Power AC-7a (P_e)	(230 V) Single Phase, NO 9.2 kW (400 V) Three Phase, NO 27.7 kW
Rated Operational Current AC-7b (I_e)	(230 V) Single Phase, NO 22 A (400 V) Three Phase, NO 22 A
Rated Operational Power AC-7b (P_e)	(230 V) Single Phase, NO 3.7 kW (400 V) Three Phase, NO 11 kW
Recommended Screw Driver	Control Circuit Pozidriv 1, Main Circuit Pozidriv 2
Rated Impulse Withstand Voltage (U_imp)	4 kV
Rated Insulation Voltage (U_i)	500 V
Connecting Capacity Main Circuit	Flexible with Ferrule 1x 1.5 ... 16 mm² Flexible with Ferrule 2x 1.5 ... 10 mm² Flexible with Insulated Ferrule 1x 1.5 ... 16 mm² Flexible with Insulated Ferrule 2x 1.5 ... 10 mm² Flexible 1x 1.5 ... 16 mm² Flexible 2x 1.5 ... 10 mm² Rigid 1x 1.5 ... 25 mm² Rigid 2x 1.5 ... 10 mm²
Connecting Capacity Control Circuit	Flexible with Ferrule 1x 1 ... 2.5 mm² Flexible with Ferrule 2x 0.75 ... 1.5 mm² Flexible with Insulated Ferrule 1x 1 ... 2.5 mm² Flexible with Insulated Ferrule 2x 0.75 ... 1 mm² Flexible 1x 1 ... 2.5 mm² Flexible 2x 1 ... 1.5 mm² Rigid 1x 1 ... 4 mm² Rigid 2x 1 ... 2.5 mm²
Tightening Torque	Control Circuit 0.9 N·m, Main Circuit 2.5 N·m
Wire Stripping Length	Control Circuit 7 mm, Main Circuit 13 mm
Degree Of Protection	IP20
Electrical Durability	AC-1 (NO) 150000 cycle AC-3 (NO) 150000 cycle AC-7a (NO) 150000 cycle AC-7b (NO) 150000 cycle
Mechanical Durability	1000000 cycle
Number Of Poles	3
Number Of Auxiliary Contacts NC	0
Number Of Auxiliary Contacts NO	0
Number Of Main Contacts NC	0
Number Of Main Contacts NO	3
Width In Number Of Modular Spacings	3
Pollution Degree	3
Standards	IEC/EN 60947-1, IEC/EN 60947-4-1, IEC/EN 61095, UL 60947-1, UL 60947-4-1
Environmental
Ambient Air Temperature	Operation -25 ... +55 °C STorage -40 ... +80 °C
Maximum Operating Altitude Permissible	2000 m
Resistance To Shock Acc. To IEC 60068-2-27	11 ms Pulse 15g
Dimensions
Product Net Width	54 mm
Product Net Height	85 mm
Product Net Depth / Length	65 mm
Product Net Weight	0.41 kg
Warranty	As Per Manufacturer Terms and Condition
