Product Description

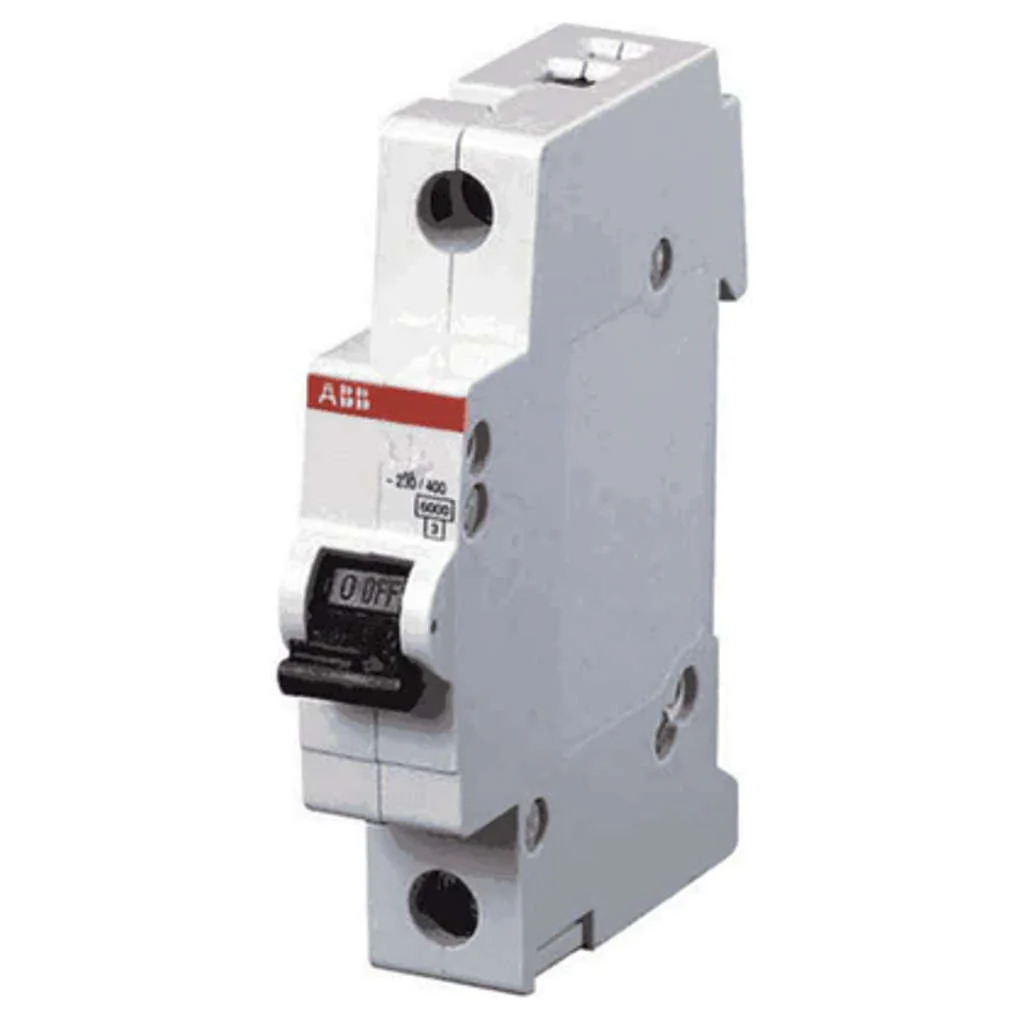

• SH200M Miniature Circuit Breaker, DIN Rail Mounting

• Single pole, C Characteristics

• System pro M Home SH200M miniature circuit breakers are current limiting. They have two different tripping mechanisms, the delayed thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection.

• They are available in different characteristics (B,C,D), configurations (1P,1P+N,2P,3P,3P+N,4P), breaking capacities (up to 10 kA at 230/400 V AC) and rated currents (up to 63A).

• All MCBs of the product range SH200M comply with IEC/EN 60898-1, allowing the use for residential, commercial and industrial applications.

Product Specifications

Rated Current	Code	Product Id
0.5 A	SH201M-C 0.5	1SYS271011R0984
1 A	SH201M-C 1	1SYS271011R0014
1.6 A	SH201M-C 1.6	1SYS271011R0974
2 A	SH201M-C 2	1SYS271011R0024
3 A	SH201M-C 3	1SYS271011R0034
4 A	SH201M-C 4	1SYS271011R0044
6 A	SH201M-C 6	1SYS271011R0064
10 A	SH201M-C 10	1SYS271011R0104
16 A	SH201M-C 16	1SYS271011R0164
20 A	SH201M-C 20	1SYS271011R0204
25 A	SH201M-C 25	1SYS271011R0254
32 A	SH201M-C 32	1SYS271011R0324
40 A	SH201M-C 40	1SYS271011R0404
50 A	SH201M-C 50	1SYS271011R0504
63 A	SH201M-C 63	1SYS271011R0634
